HomeTrack + PerformanceThrottle Bodies Series 1 Elise 1996-2000

Throttle Bodies Series 1 Elise 1996-2000


Be the first to write a review

Throttle Bodies Series 1 Elise 1996-2000 Image
Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image Throttle Bodies Series 1 Elise 1996-2000 Image

£599.95 EX VAT

Taken over 1000 hours to design and develop to alleviate any cutting of the boot box area.

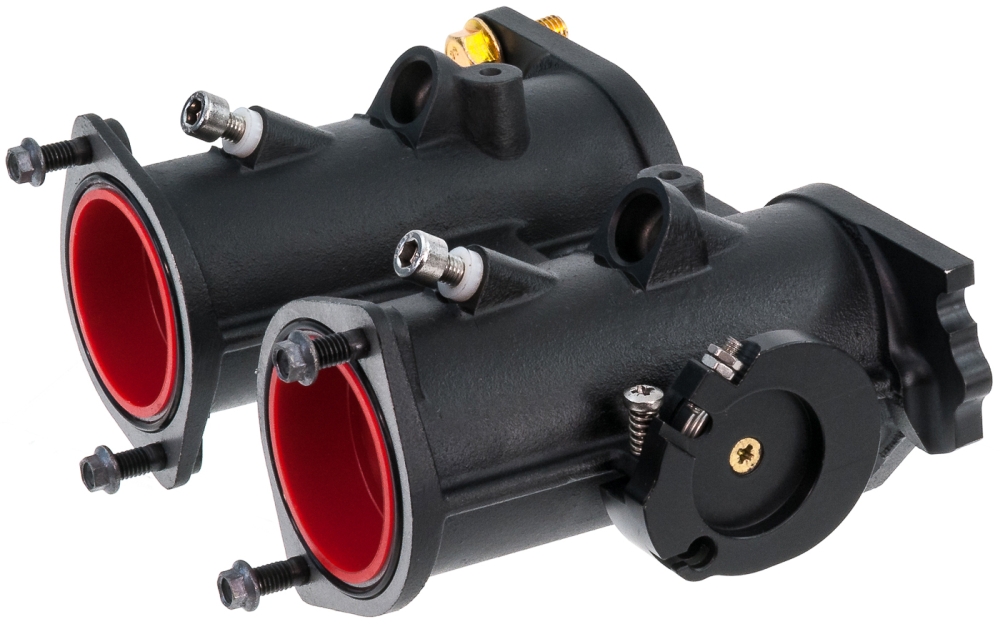

2 x Throttle bodies, Black anodised AND powder coated with a special heat dispersing powder coat, so they won’t corrode inside or outside.

High quality sealed bearings and  flanged seals rather than bronze bushes and plastic washers.

The Butterfly Shaft and the Butterflies are Naval Bronze as are all the screws which alleviate any galvanic corrosion between differing metals.

Butterflies have a 6 degree chamfer rather than 8 degrees for a smoother acceleration transition.

The Throttle bodies are fully CNC machined with 42mm or 45mm ports and exactly match head porting of that size so no grinding of the throttle bodies is required, saves many hours work.

The centre quadrant accepts the barrel end of a standard throttle cable to eases fitments, you don’t have to cut and splice on a solderless nipple which can come loose and eases fitment.

Springs heat treated 304 grade stainless steel.

The Quadrants are Zinc Coated and Black Xylan coated for corrosion resistance

The Throttle Body main Inlets have 'O' Ring seals so no gasket or sealant is required.

Accepts standard original equipment or aftermarket Throttle Position Sensor.

M6 x 20mm thread- locked studs and Aircraft specification K-Nuts

The coolant port has a pre-installed barbed brass outlet for easy install of the coolant hose.

Does not include the curved Air Horns, fuel rail and Airbox which are available in our induction section.

This fits the following models:

  • S1 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • LOTUS 340R
