HomeTrack + PerformanceK Series High Flow Induction System

K Series High Flow Induction System


Be the first to write a review

K Series High Flow Induction System Image
K Series High Flow Induction System Image K Series High Flow Induction System Image K Series High Flow Induction System Image K Series High Flow Induction System Image K Series High Flow Induction System Image K Series High Flow Induction System Image K Series High Flow Induction System Image

£645.00 EX VAT

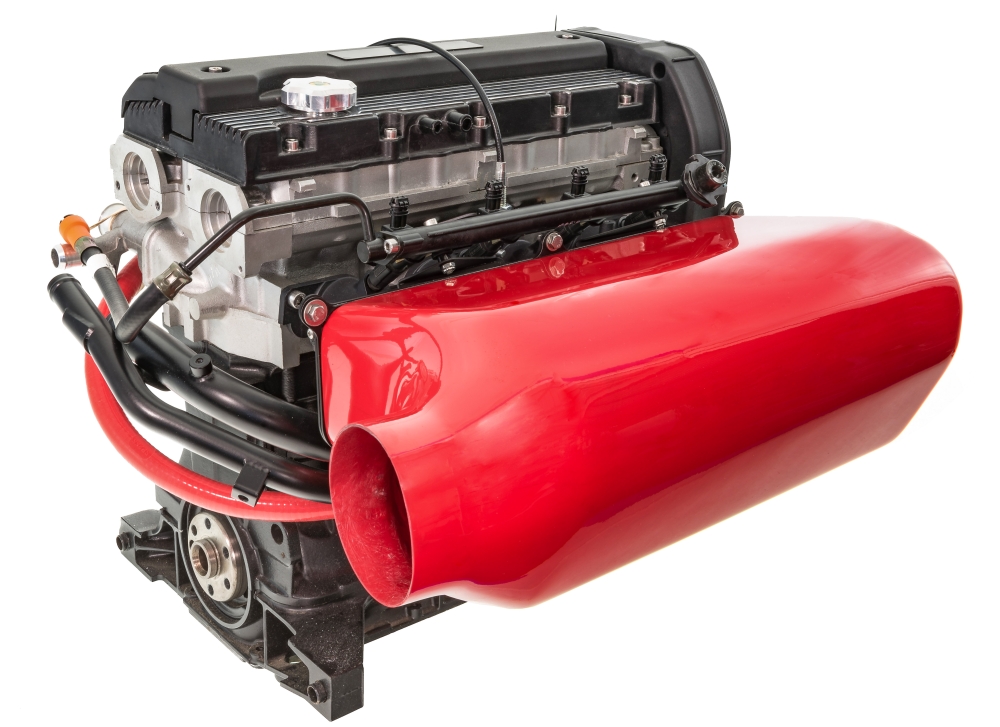

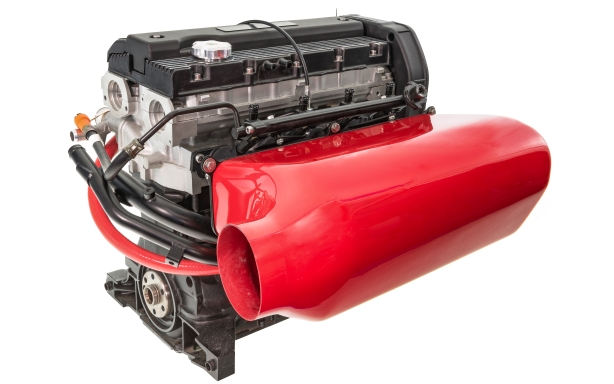

K Series High Flow Induction System

Brand new GF molds for fitment of either Jenvey or Eliseparts Direct To Head Throttle bodies

Width 410mm x Height x 165mm x Length 250mm ( Protrution from Throttle Body)

The Hi Flow Elise Kit comprises of:

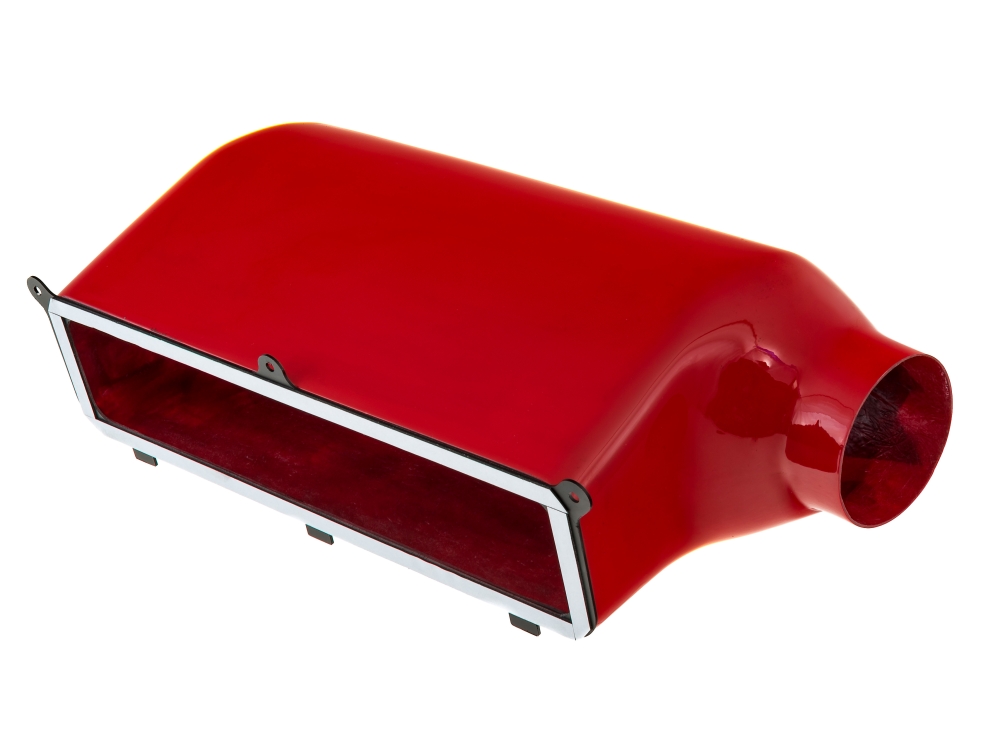

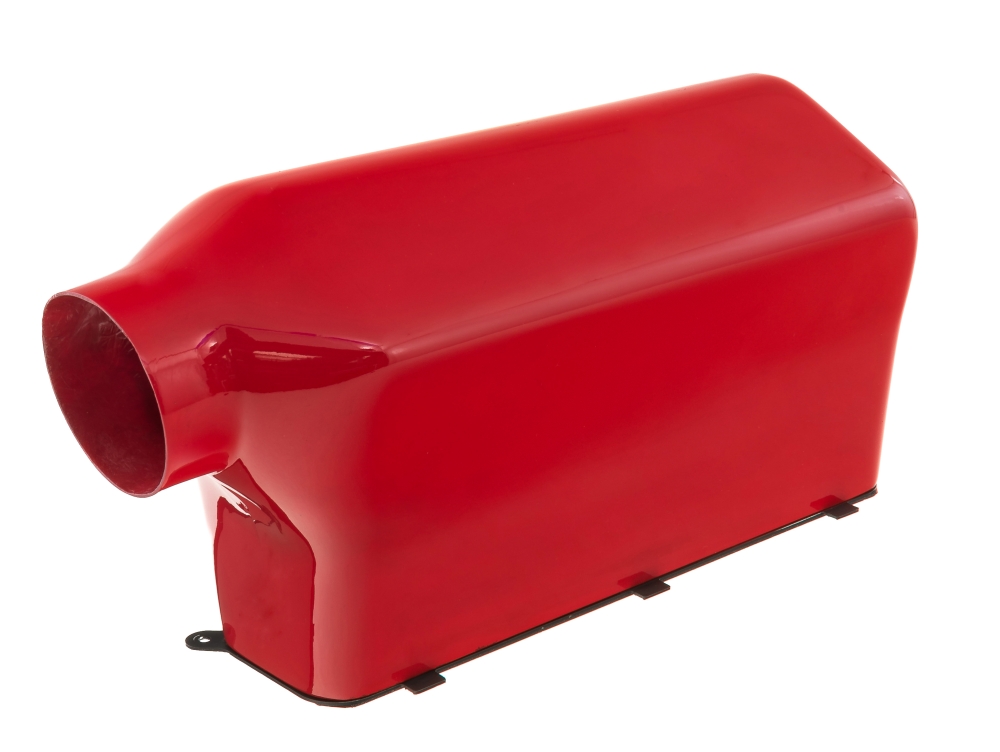

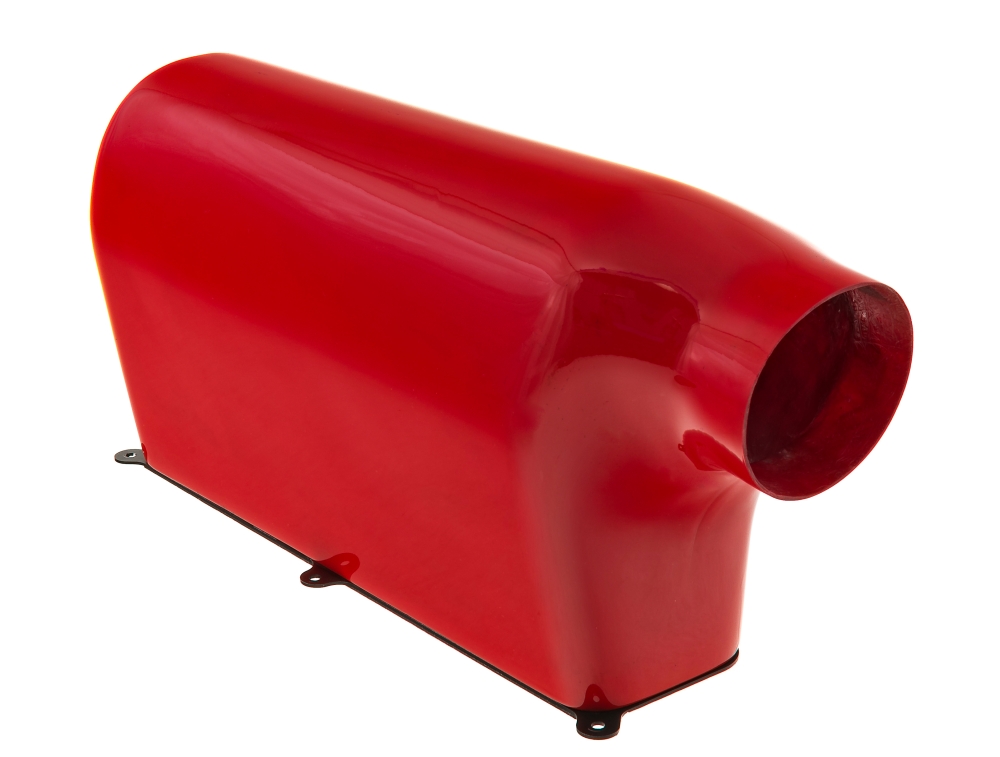

• Airbox (red or black)

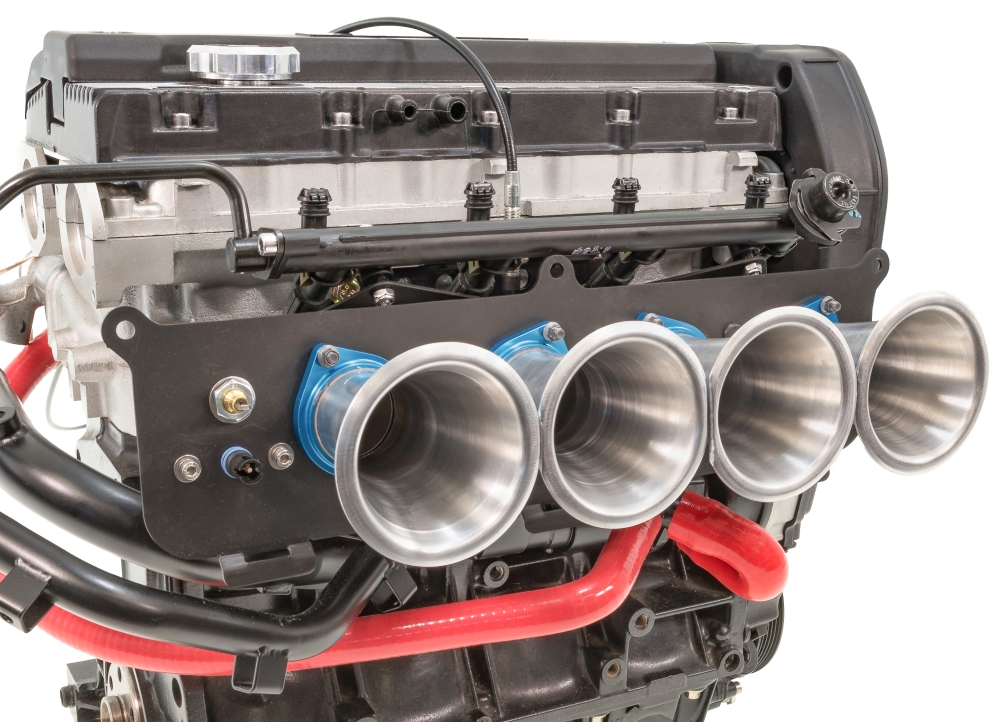

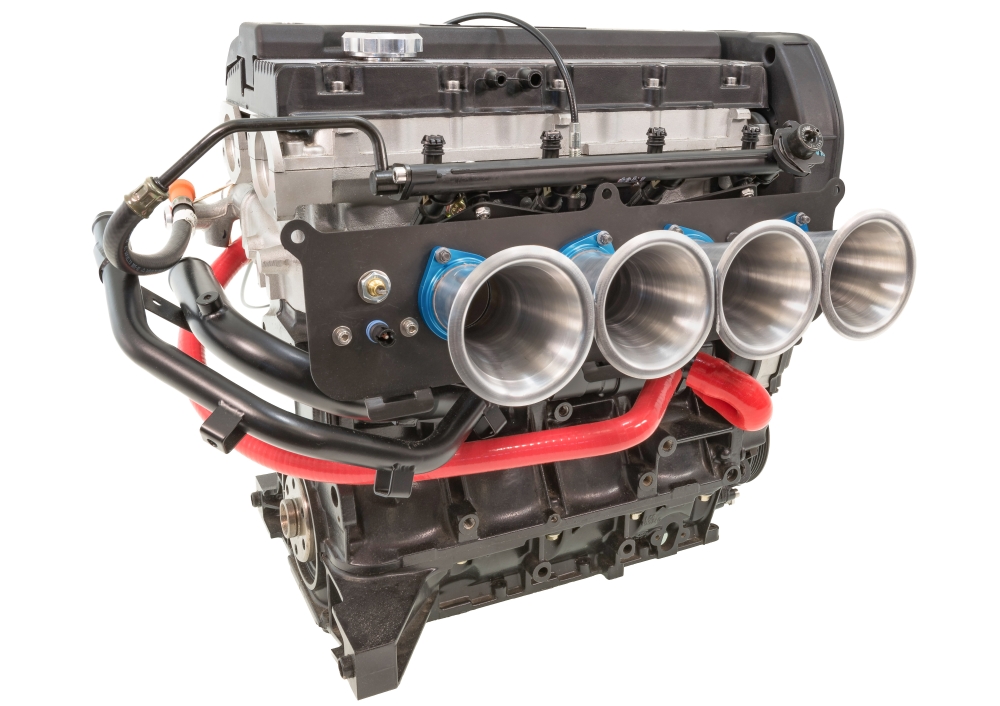

• 4 x 90 mm long x 42 mm bore trumpets or alternatively 4 x 90 mm long x 45 mm bore (see options)

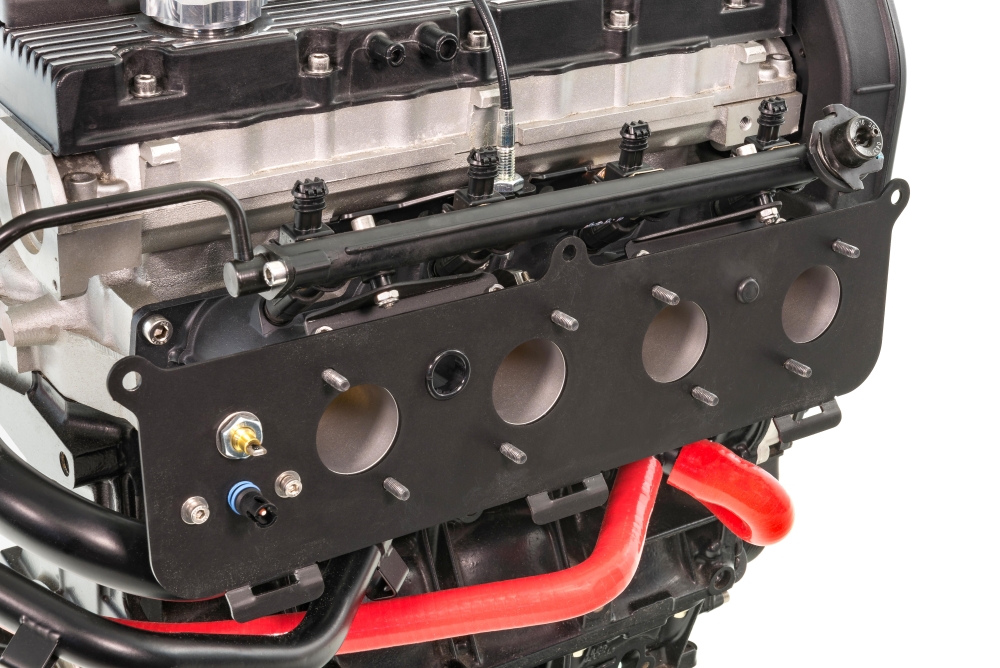

• Aluminium backplate plus fixings for above, and includes fuel rail mounting for standard K Series fuel rail.

• Cone Ramair Foam Air filter with flow rate of 300+ BHP

• 500 mm length of 100 mm diameter flexible air duct

• 2 x 100 mm hose clips

• Vacuum formed cover seal for the Side intake vents

• Throttle cable bracket to take standard Elise cable

• All studs, nuts, bolts, washers etc included to enable an easy fitment

• The air temperature sensor fits into the backplate

• There are also two alternative positions on the backplate for a crankcase breather pipe connection

The airbox and backplate weighs less than 1 kg

The boot / luggage area does require modification to install this kit



This fits the following models:

  • S1 K SERIES ELISE
  • S2 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • LOTUS 340R
