V6 Exige / Evora Wheel Bolt (31mm)


Be the first to write a review

V6 Exige / Evora Wheel Bolt (31mm) Image
V6 Exige / Evora Wheel Bolt (31mm) Image V6 Exige / Evora Wheel Bolt (31mm) Image V6 Exige / Evora Wheel Bolt (31mm) Image V6 Exige / Evora Wheel Bolt (31mm) Image V6 Exige / Evora Wheel Bolt (31mm) Image V6 Exige / Evora Wheel Bolt (31mm) Image

£4.49 EX VAT

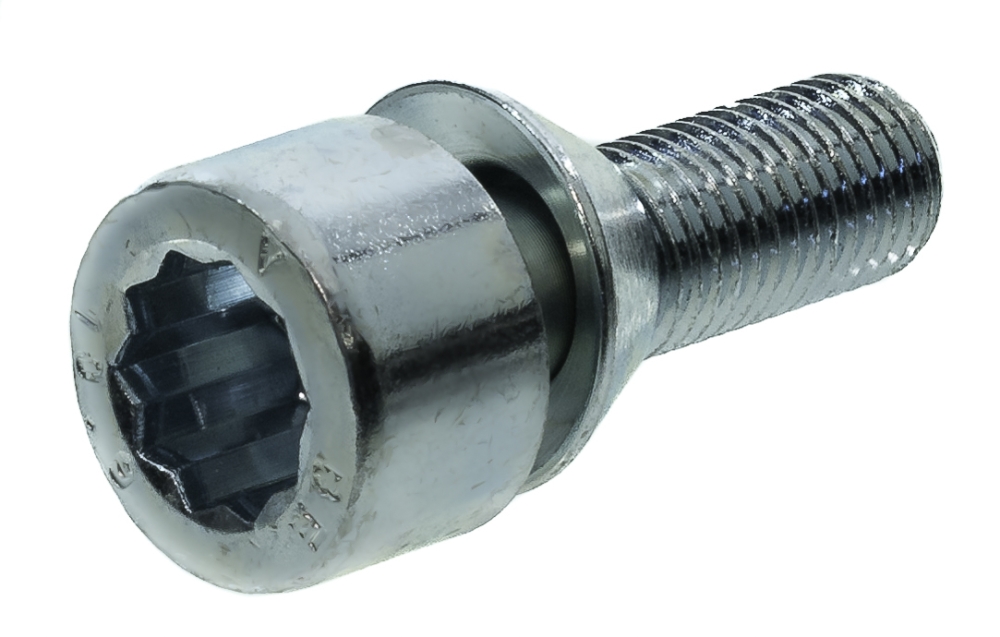

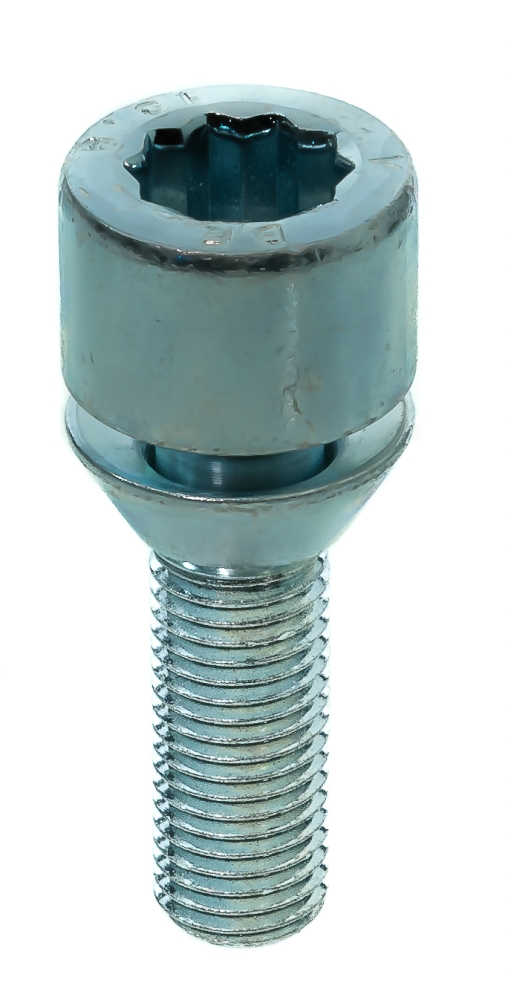

1 x Splined Star High Tensile Original Lotus Exige & Evora wheel bolt.

Total length is 57.00mm with 32.00mm of thread.

10.9 grade with 60 degree taper static conical washer as used on the Evora and V6 Exige but with 31mm long thread.

These bolts have now replaced the 26mm thread bolt (A132G6002F).

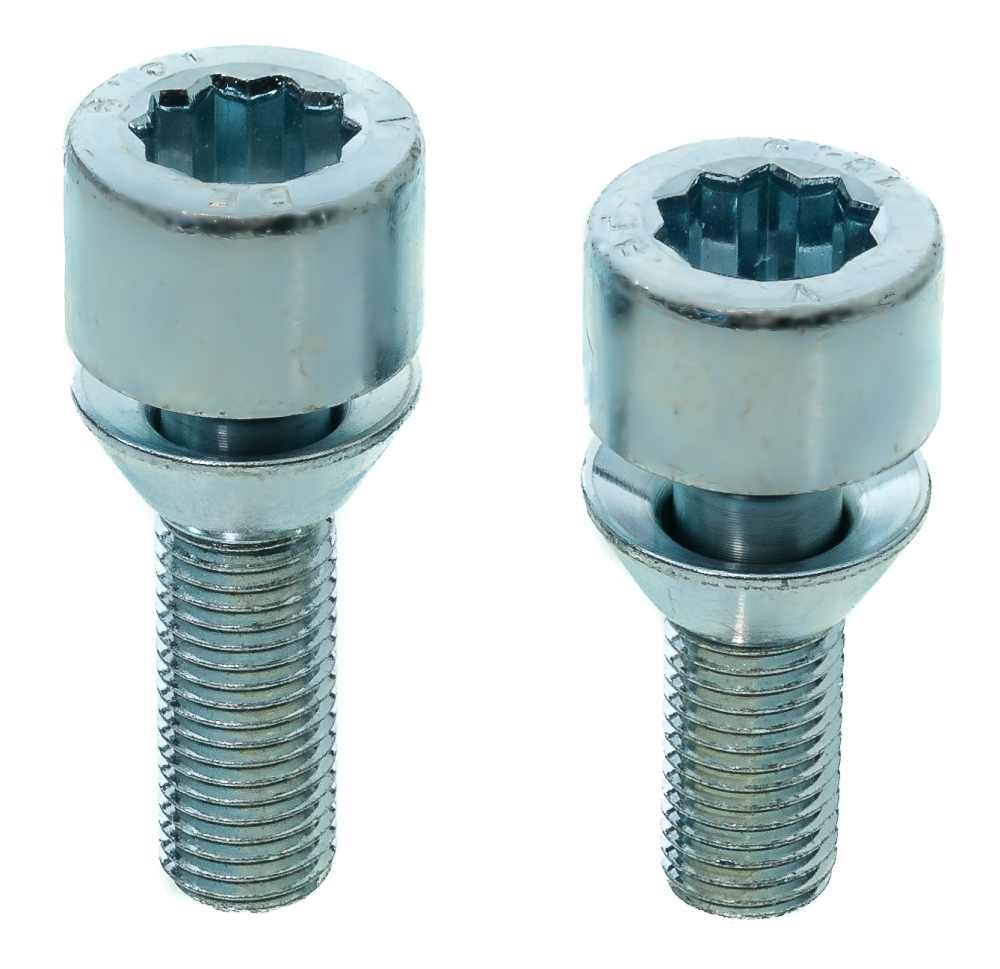

The difference in length is shown in the main picture.

Very clever design in that the 60 degree tapered washer is static within the wheel hub and holds this stationary position whilst turning the wheel bolt head.

This alleviates the tendency to score the aluminium wheel hub and allows even torque to be set against the bolt reducing the risk of the bolt breaking or the wheel coming loose

Lotus part number for a single Exige 430 Cup wheel bolt is A138G6012F

20 x Bolts are used per vehicle.

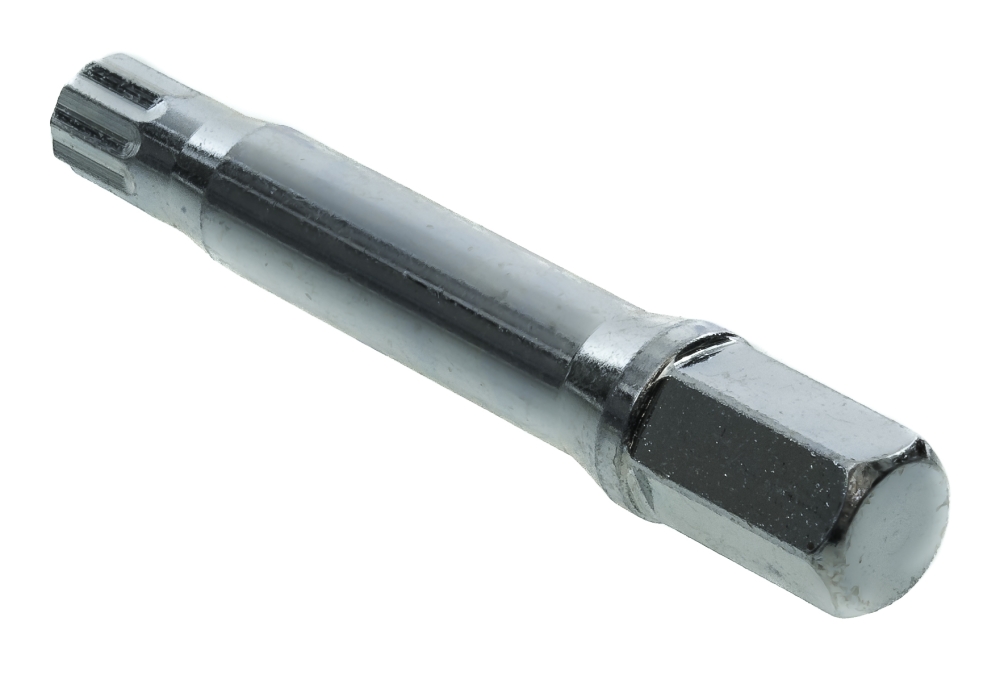

NEW BILLET STEEL SPLINE TOOL AVAILABLE HERE

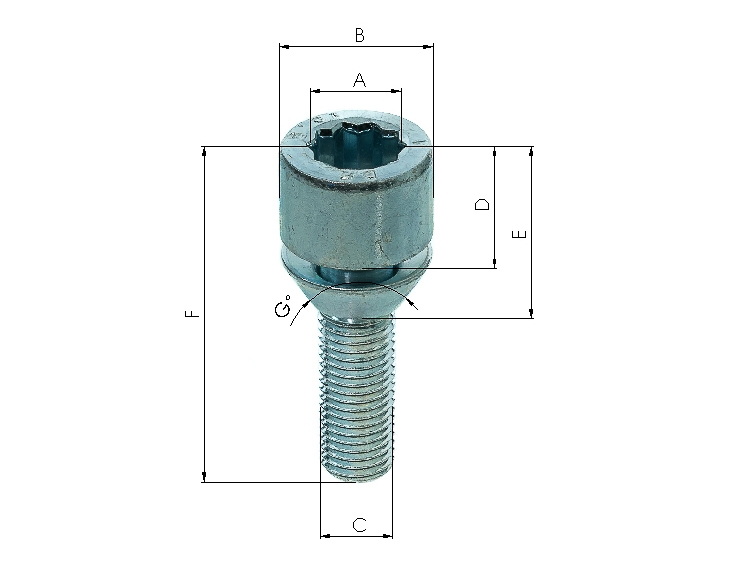

Dimensions

A Star Form
B 23.00mm
C 12.00mm x 1.5mm Pitch
D 15.00mm
E 25.00mm
F 57.00mm
G 60 Degree Taper
Thread Length 32.00mm

This fits the following models:

  • LOTUS EVORA
  • V6 EXIGE / ROADSTER & CUP
