Stiffer Front Adjustable Anti-Roll Bars


Be the first to write a review

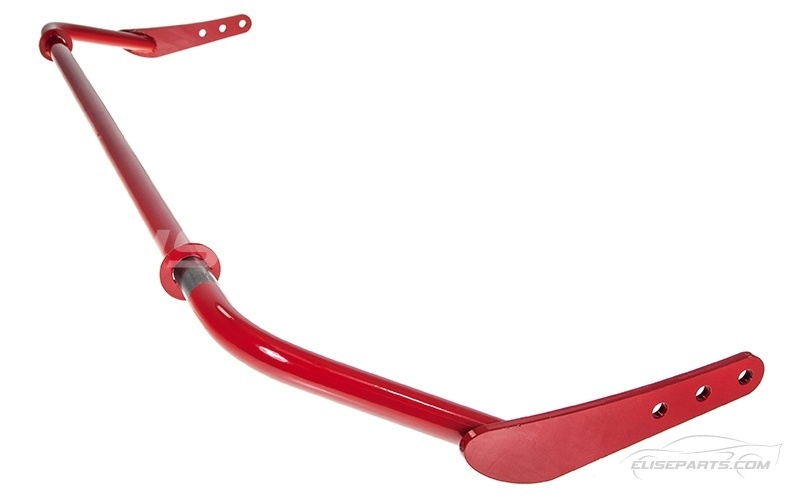

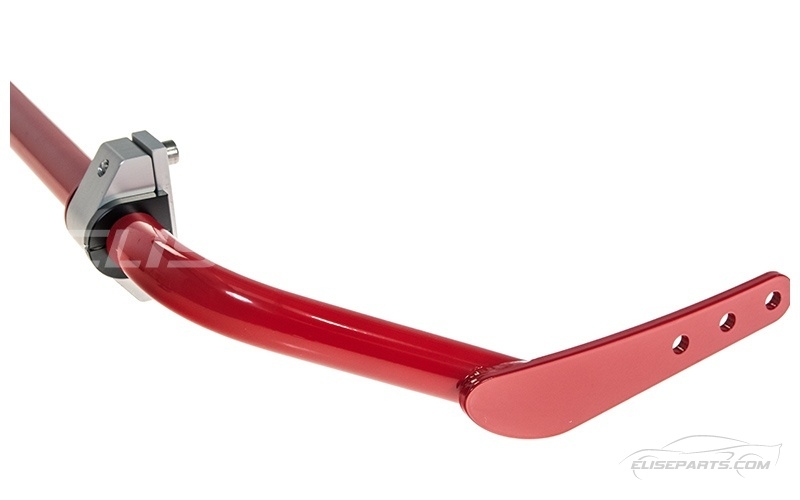

Stiffer Front Adjustable Anti-Roll Bars Image
Stiffer Front Adjustable Anti-Roll Bars Image Stiffer Front Adjustable Anti-Roll Bars Image Stiffer Front Adjustable Anti-Roll Bars Image Stiffer Front Adjustable Anti-Roll Bars Image

Sleeves not required for S1 option.

£199.95 EX VAT

Our anti roll bars are second to none. Beautifully engineered from cold drawn sprung steel.

We have increased stiffness by using a slightly larger OD tube (7/8ths instead of 3/4") and by increasing the gauge of the steel we have found in our extensive testing the ideal set up for an Elise with modified / lowered suspension.

The bar stiffness can be varied from 1.75 times as stiff as OE to 2.25x stiffer by moving the drop links either further or closer to the centre of the bar.

There are no downsides to this modification; it does not affect the ride comfort, it simply alleviates body roll thus enhancing your vehicle's cornering abilities.

A direct replacement for your present bar.

Supplied complete with fitting instructions, takes approximately one hour to fit.

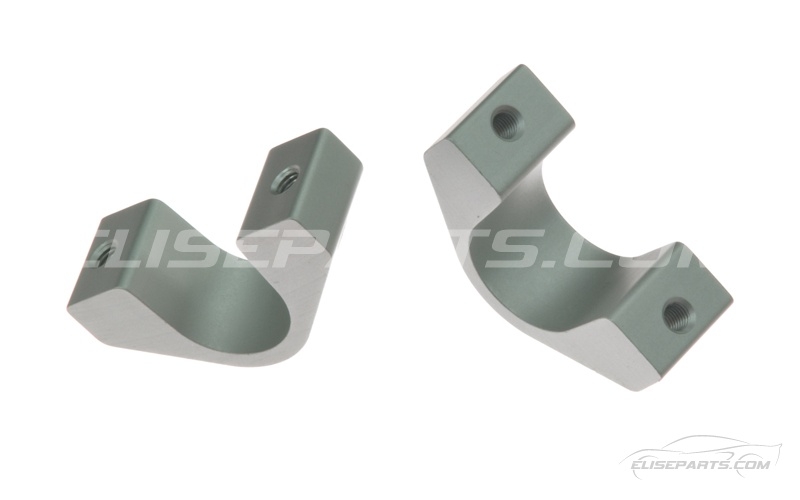

NB* The 2 x Alloy Sleeves shown in the pictures are only required if you do not have these already, most Late S1's and Rover K Series models have these sleeves.

Please check your present mounts if you are uncertain.

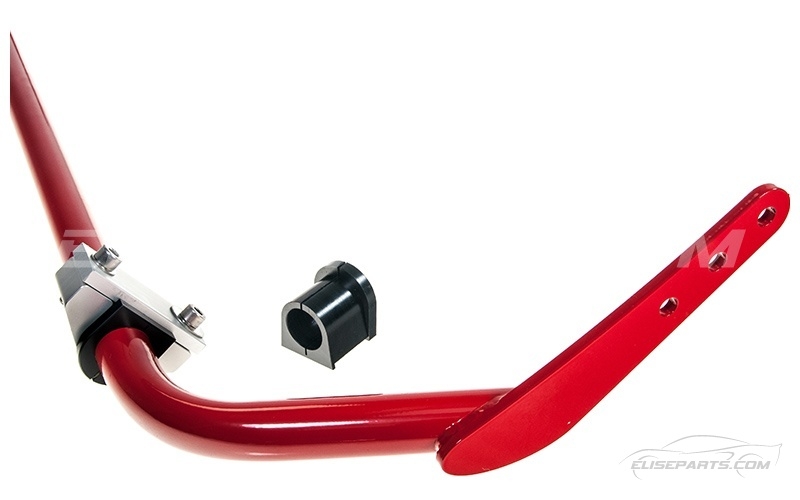

SUPPLIED COMPLETE WITH TWO NEW NYLATRON BUSHES.

NB: Some later S1's have rubber bushes. If this is the case, please choose the S2 and later S1 option from the dropdown options.

2 X ALUMINIUM SLEEVES ARE AVAILABLE AS EXTRA IF REQUIRED FROM THE DROPDOWN OPTIONS. (DURALAC WILL BE REQUIRED FOR THE BOLTS).

We also recommend our Brace Bar kit to strengthen the chassis due to the extra load .

You can find it in the related products.

This fits the following models:

  • S1 K SERIES ELISE
  • S2 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • S2 2ZZ EXIGE
  • LOTUS 340R
  • S2 2ZZ ELISE 2004-2011
  • VX220 / SPEEDSTER
  • LOTUS EUROPA
  • LOTUS 2-ELEVEN
  • S3 1.6 ELISE 2011-2014
  • V6 EXIGE / ROADSTER & CUP
  • S2 1ZZ ELISE 2006-2010
  • S3 ELISE 2011-2021
  • LOTUS 3-ELEVEN
