Aerocatch


Be the first to write a review

Aerocatch Image
Aerocatch Image Aerocatch Image Aerocatch Image Aerocatch Image

£59.95 EX VAT

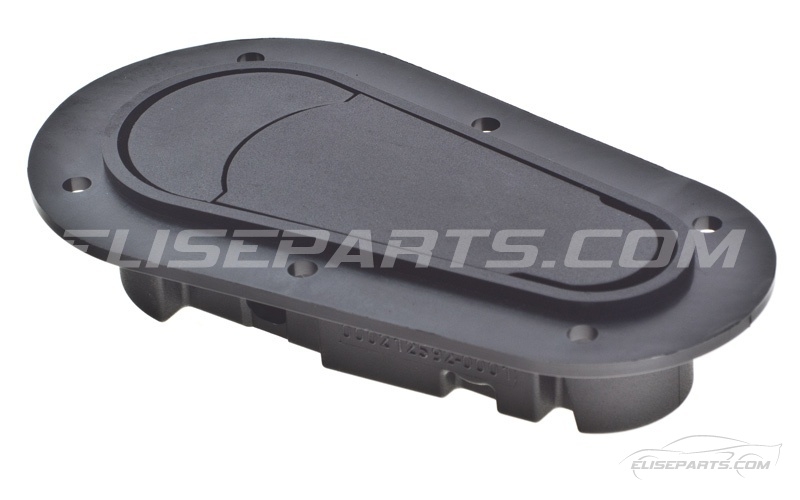

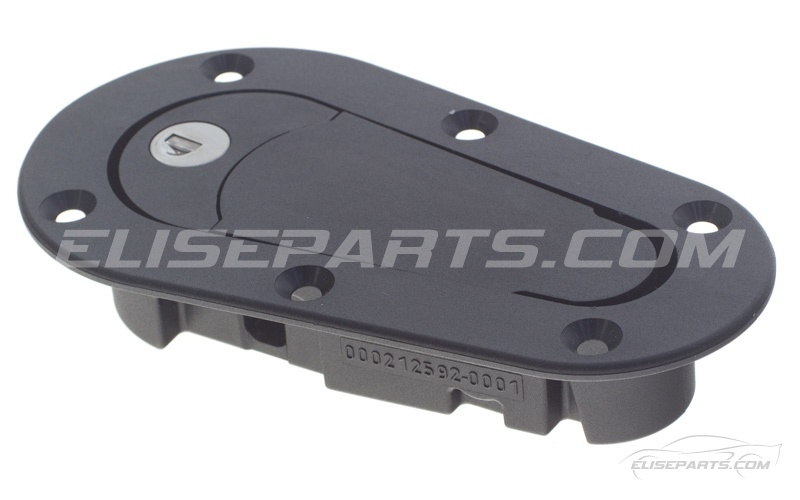

The aerodynamically efficient and aesthetically styled AeroCatch is setting new standards in panel fixing, providing a wide variety of fixing solutions for bodywork on Motorsport vehicles.

The PTFE coated strike pins virtually eliminate the need for regular lubrication and can be used through the base or side, making them suitable for bonnets or boots.

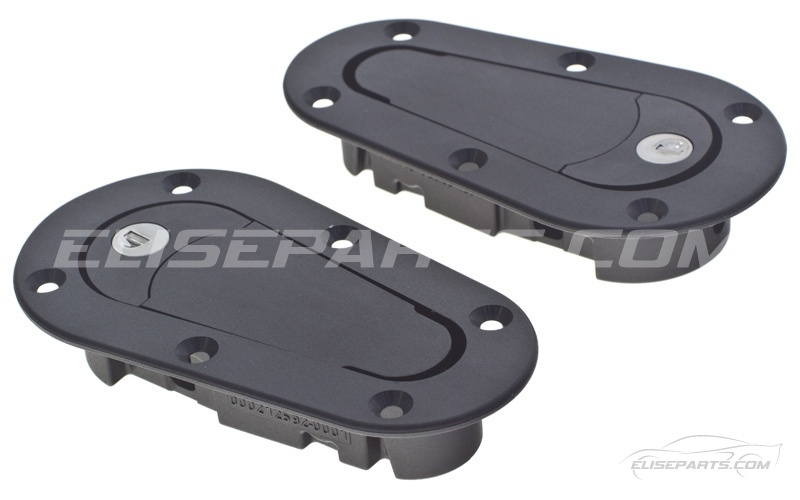

There are two types of AeroCatch available; the Plus Flush and the Flush.

The Plus Flush type is designed to be fixed through the top surface of a panel with six M4 countersunk screws. The fitting flange will be 2.5mm above the panel surface. Ideal for thin metallic or composite panels.

The Flush type is designed to be fixed from underneath the panel thereby creating a flush surface and can be bonded into position so that there are no fasteners visible from the top of the panel. Ideally suited for composite panels.

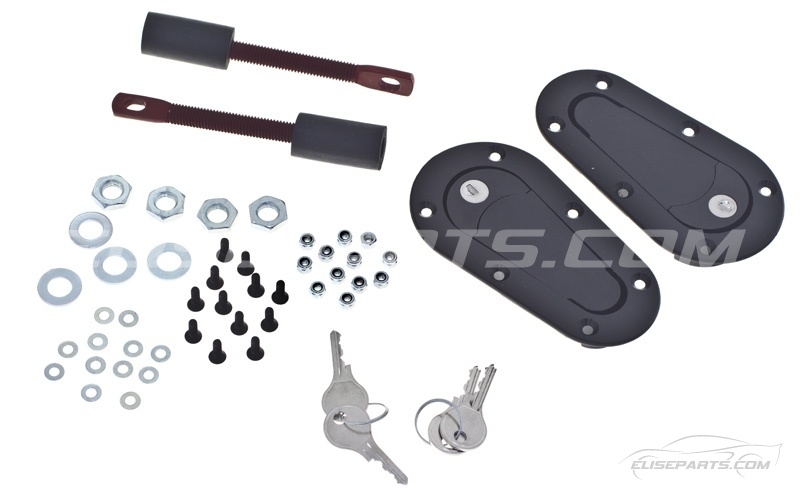

  • Kit Contents:
  • 2 x AeroCatch
  • 2 x Strike Pins
  • 4 x M10 Half Nuts
  • 4 x M10 Washers
  • 2 x Bump Stops
  • 12 x M4 Countersunk Screws
  • 12 x M4 Nyloc Nuts
  • 12 x M4 Washers


Supplied in Pairs ( 2 Aerocatch Fasteners).

This fits the following models:

  • S1 K SERIES ELISE
  • S2 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • S2 2ZZ EXIGE
  • LOTUS 340R
  • S2 2ZZ ELISE 2004-2011
  • VX220 / SPEEDSTER
  • LOTUS EUROPA
  • LOTUS 2-ELEVEN
  • LOTUS EVORA
  • S3 1.6 ELISE 2011-2014
  • V6 EXIGE / ROADSTER & CUP
  • S2 1ZZ ELISE 2006-2010
  • S3 ELISE 2011-2021
