Pro Alloy Single Pass Upgraded Radiator


Read reviews

Pro Alloy Single Pass Upgraded Radiator Image
Pro Alloy Single Pass Upgraded Radiator Image Pro Alloy Single Pass Upgraded Radiator Image Pro Alloy Single Pass Upgraded Radiator Image Pro Alloy Single Pass Upgraded Radiator Image Pro Alloy Single Pass Upgraded Radiator Image Pro Alloy Single Pass Upgraded Radiator Image Pro Alloy Single Pass Upgraded Radiator Image

£434.95 EX VAT

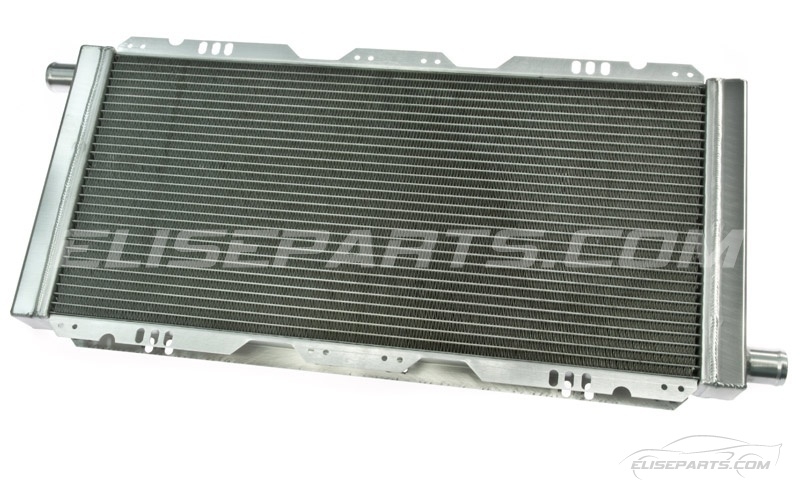

Pro Alloy Single Pass Upgraded Full Aluminium Radiator is simply the best radiator available for the money in our community.

As used on their own 500 BHP S1 Exige and 300 BHP VX220!

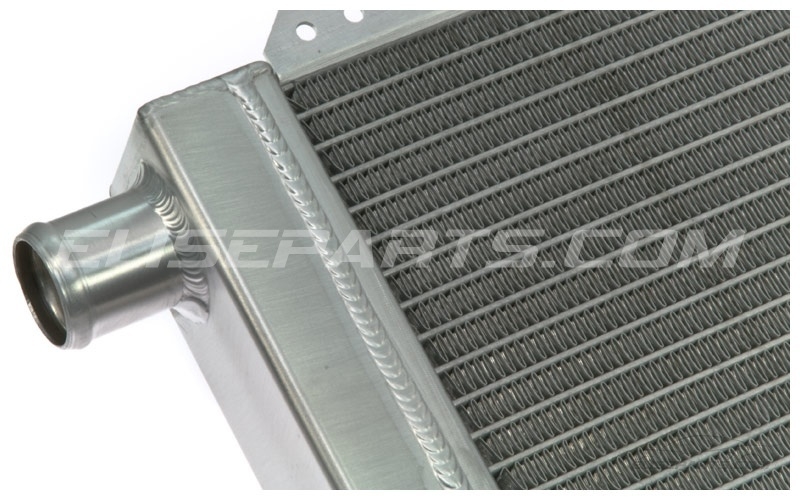

It has a single row 40mm thick, high efficiency alloy core has all aluminium end tanks, perfect for high pressure systems.

One often misleading theory is that multi row cores are better in terms of performance than single row units. In practice, there is more to this than simply adding up the number of cooling tubes and assuming that quantity wins the day.

The calculation required here is tube volume, and it is very easy to see how a single row, wide port tube is larger in its port area than two smaller tubes sat side by side.

Further to this, a single row core doesn't have any divisions in the flow path, and they also have a better surface contact to the cooling fins.

Cutting the two core types down the middle and examining them in cross section reveals the difference in design, and further measuring often yields evidence that more core tubes is not always the better choice.

This High Performance Alloy Water Radiator also has all holes pre drilled ready to fit making a simple straight replacement for the standard unit.

Fits All Lotus Models With or Without air conditioning.

Can be supplied with one of the following Fan fitting options.

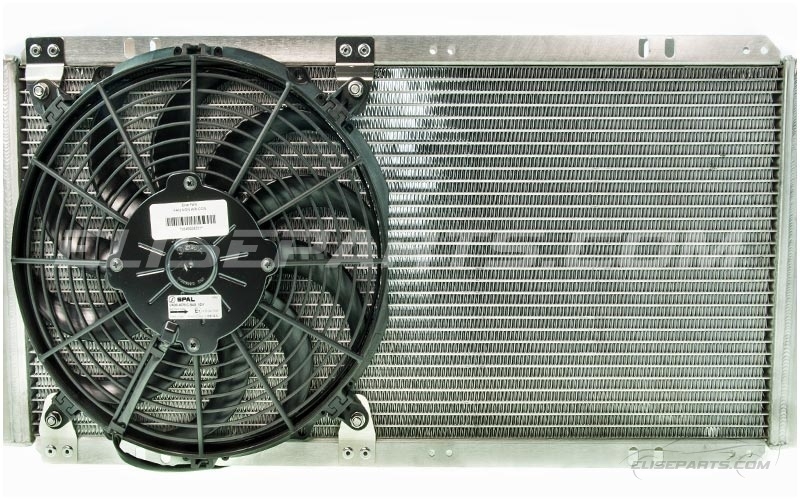

  1. Single Fan Mounting Kit consisting of 316 marine grade brackets, rivets, stainless steel fixings and genuine Spal plastic fixing brackets.

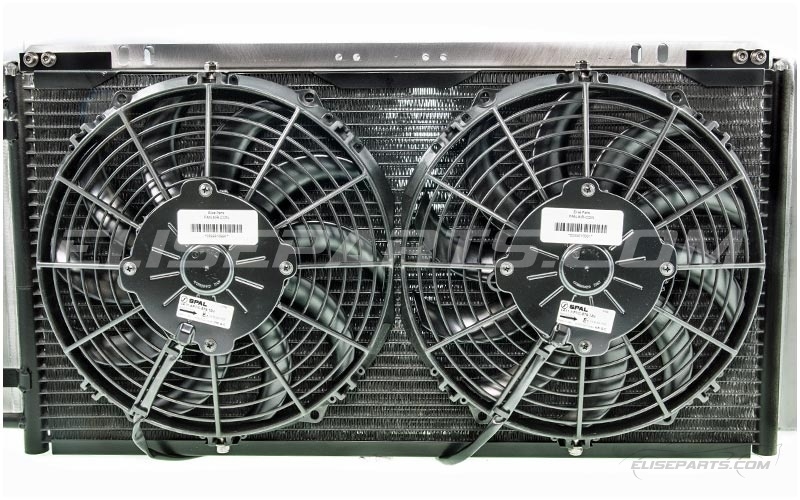

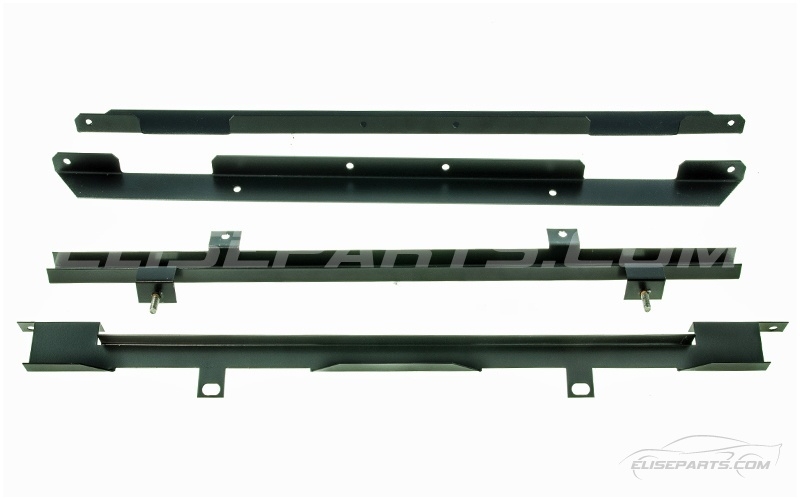

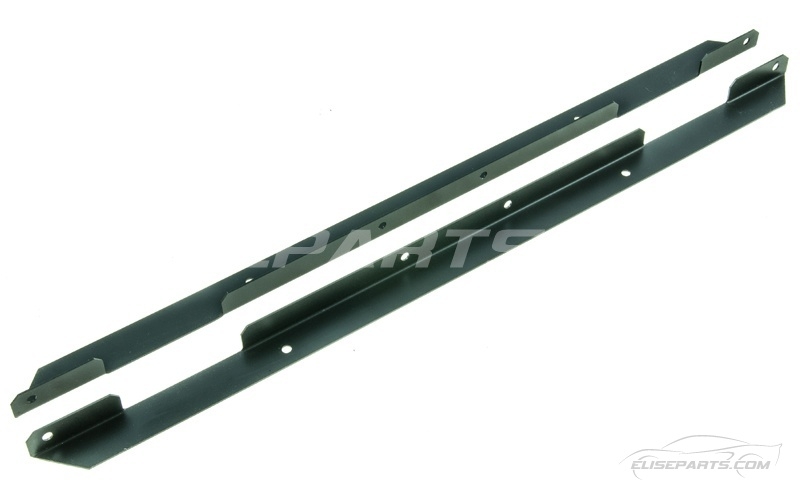

  2. Twin Fan (non-aircon) Bracket Kit consisting of 304 grade stainless steel xylan coated brackets and stainless steel fixings.
  3. Twin Fan (aircon) Bracket Kit consisting of genuine Lotus powder coated brackets and stainless steel fixings.

N.B. Fans are not included, you can find them in the related products below.

Please note, you will need to retain the plastic mounting brackets from your original fans (Non-AC) as they are not available as a separate part.

This fits the following models:

  • S1 K SERIES ELISE
  • S2 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • S2 2ZZ EXIGE
  • LOTUS 340R
  • S2 2ZZ ELISE 2004-2011
  • VX220 / SPEEDSTER
  • LOTUS EUROPA
  • LOTUS 2-ELEVEN
  • S3 1.6 ELISE 2011-2014
  • V6 EXIGE / ROADSTER & CUP
  • S2 1ZZ ELISE 2006-2010
  • S3 ELISE 2011-2021
  • LOTUS 3-ELEVEN
